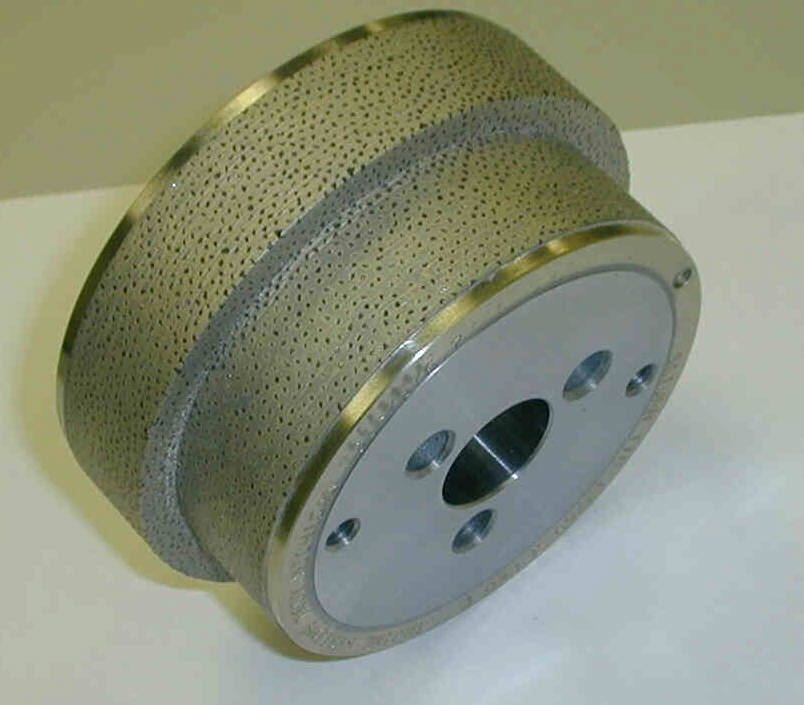

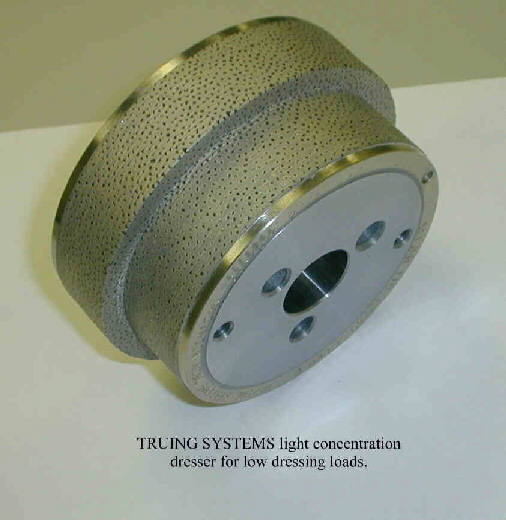

BENEFIT OF TRUING SYSTEMS' CONTROLLED DISPERSION DIAMOND DRESSING ROLLS
Product Construction
- Advantages of powdered metal sintering
- Extreme durability -- even in the harshest environments
- Compression strength give the highest diamond retention resulting in a long productive life
- Engineered matrix for toughness to match the application
Diamonds
- Concentrations from 2.4 to 4.4 carats per square inch per requirements
- reinforced wear areas for superior product life
Refurbishing
- Reworkable --diamond surfaces are retrued
- Diamond surfaces can be reworked up to three times
- Rework cost is 1/3 of new
- Rebuildable
- Diamonds are returned and matrix is rebuilt
- Metal Matrix can be added in some instances
-
Rebuild cost is 1/2 of new
Fast Turn Around Time
- New construction -average 4 weeks lead time with 2 week lead times achievable
- Overall life cycle of Controlled Dispersion Tools surpasses plated products.
